450/750V Waterproof Rubber Sheathed Copper Core Mobile Electric Cable for Submersible Pump Power Transimision
Low Voltage Flexible Rubber Copper Core Waterproof Submersible Pump Cable

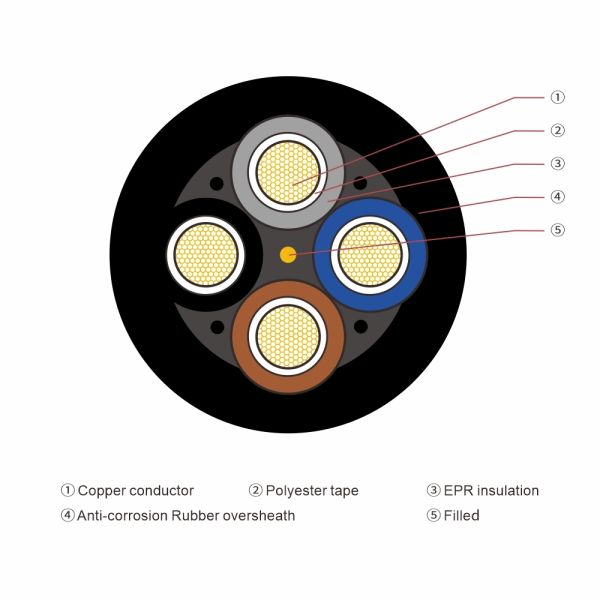

This cable consists of a copper core conductor, EPDM rubber insulation, and a rubber sheath, filled with thermoplastic elastomer to provide waterproofing. It is primarily used for power transmission in equipment such as submersible pumps, ensuring stable power supply to underwater devices.
Product Overview
This waterproof rubber cable is manufactured using special rubber waterproof material and thermoplastic elastomer filling materials, featuring cold resistance, flexibility, and superior waterproof properties. Designed for connecting submersible motors with DC voltage 450/750V and below, it's ideal for submersible pump power transmission with a long-term allowable operating temperature not exceeding 65°C.
Product Quick Details
- Conductor: Stranded multiple thin copper wires for maximum flexibility
- Sheath: waterproof rubber
- Insulation: EPDM
- Voltage Rating: 450/750V
- Filler: TPE (thermoplastic elastomer)
- Wrapping Tape: Non-woven fabrics
- Shape: Round design for optimal performance
- Core Options: Available in Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores
- Cross Section Range: From 0.75mm to 300mm
Primary Applications
- Water Conservancy: Submersible pumps for farmland irrigation, fish pond oxygenation, urban water supply systems, and sewage treatment
- Construction: Power supply for submersible pumps in sinking well construction and underwater concrete vibrators
- Municipal Engineering: Temporary power supply for sewer cleaning equipment and river dredging machinery
- Underwater Operations: Underwater welding, cleaning, and other submerged applications
- Landscape Lighting: Power transmission for water illumination lamps and water treatment equipment
Technical Specifications
| Product Name | Flexible Waterproof Rubber Cable |
| Brand | Ke Fei Te |
| Model | JHS |
| Conductor Material | Stranded Copper conductor |
| Insulation Material | EPDM |
| Jacket | Rubber |
| Color | Black |
| Shape | Round wire |
| Features | waterproof, cold resistant, highly flexible,Movable,high tensile strength |
Quality Assurance
- Every production process undergoes specialized quality testing
- Professional engineers conduct final quality inspections
- All products meet CCC/ISO9001 certifications and comply with IEC standards
About Chongqing Kefei Cable Group Co., Ltd.
With 40 years of experience in R&D and production of rubber cables, our company specializes in manufacturing various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cables, and other specialized series. Our flexible cable series benefits from over 20 years of expertise and can be customized to meet specific customer requirements.
Our Advantages
- Advanced production technology
- High-quality design standards
- Comprehensive testing equipment
- Stringent quality control processes
- Mature and optimized production workflows
Production Facilities
Certifications
Packaging & Shipping
We provide professional, environmentally friendly, and efficient packaging services to ensure the complete safety of your goods during transportation.
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer committed to delivering the highest quality products.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we offer customized solutions tailored to your specific requirements.
Q: How can we guarantee quality?
A: We implement pre-production sampling and final inspection protocols before shipment.
Q: How can I place an order?
A: Please provide detailed requirements for an immediate quote. For complex requests, we recommend direct contact via Skype, email, or phone.
